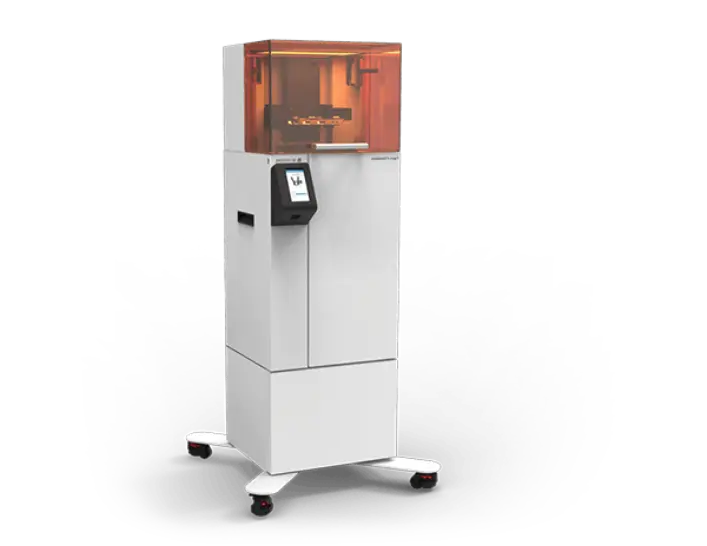

FIGURE 4 STANDALONE
3D PRINTER

PLASTIC PARTS LOW VOLUME PRODUCTION 3D PRINTER

MATERIALS GET A QUOTE NOW
3d-printer-figure4-standalone
OVERVIEW
KEY FEATURES
SPECIFICATIONS
What's Included
Applications
Industry
VIDEOS
BLOG
FAQ

OVERVIEW

Figure 4 Standalone is an industrial-grade 3D Printer appropriate for low-volume plastic parts production and prototyping. Figure 4 3D prints plastic, biocompatible, and rubber parts directly without injection machine molds. Figure 4 3D printing is the latest method of producing industrial plastic parts at a lower cost with a fast turnaround time than the traditional manufacturing method of manufacturing a hand mold for injection machine molding production.

Handheld Industrial 3D scanner
Economical solution for functional prototype and low volume production
Handheld Industrial 3D scanner
High-speed production 3D printing
Handheld Industrial 3D scanner
High-quality industrial-grade 3D printing
Handheld Industrial 3D scanner
Print up to 250 parts a day

KEY FEATURES

Affordable-3d-printer
Affordable initial investment
3D-printing-technologies-figure-4
High throughput vs. competitive 3D printing technologies
Industrial-figure-4-3d-printer
Industrial-grade durability
print-figure4
Print and use same day
3d-printer-low-cost
The low total cost of operations
printer-3d-flexibility
Application flexibility
Efficient-design-figure-4-standalone
Efficient design iteration
figure-4-standalone-Six-Sigma-quality
Six Sigma quality and repeatability

SPECIFICATIONS

Features
Specification
Build Volume 124.8 x 70.2 x 196 mm / 4.9 x 2.8 x 7.7 in
XY Pixel Pitch ( Resolution ) 65 microns
Layer Thickness 10 – 100 microns
Light Wavelength 405 nm
Printer Size 42.6 x 48.9 x 97.1 cm/16.7 x 19.25 x 38.22 in
Size With Pedestal 68.1 x 70.4 x 135.6 cm / 26.8 x 27.71 x 53.38 in
Weight With Pedestal 54.4 kg/ 120 lbs
Size ( crated) 73.7 x 68.6 x 129.5 cm/ 29 x 27 x 51 in
Weight ( crated) 59 kg / 130 lbs
Software 3D Sprint, 3D Connect capable

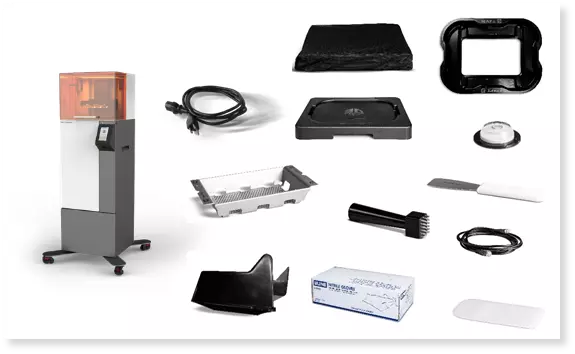

WHAT’S INCLUDED?

Figure 4 Standalone includes :
  • Printer; 110/240V, regional power cord
  • Pedestal
  • 2 - Print Platforms
  • 1 - Print Tray Kit 3D Sprint software licenses
  • 3D Sprint software licenses
  • Ethernet cable
  • Carbon filter
  • Punch Tool
  • Scraper
  • Cleaning brush
  • Box Nitrile Gloves
  • Printer bubble level
Print Tray Kit includes:
dlp-figure-4-3d-printer
Optional Accessories
  • Optional 3D Systems
  • LC-3DPrint Box
  • UV post-curing unit
figure-4-3d-system
  • Optional 3D Systems
  • Rolling Unit for stiring material
figure-4-3d-printer-resin

APPLICATIONS

urethane-3d-printing
Replacement of hand mold molding and cast urethane processes
functional prototyping parts and fast concept models
Jewelry-figure-4-3d-printer
Jewelry Investment casting patterns
plastic-figure-4-3d-printer
End-use durable plastic parts production with 3D printing
Low-batch-production-figure-4-3d-printer
Low volume production of plastic articles
Jigs and fixtures
rubber-dlp-3d-printer
Rapid tooling -moulds and master patterns
figure4-Medical-3d-printer
Elastomeric rubber parts (prototypes of grommets, seals, hoses, weatherstripping, tubes, gaskets, spacers, and other vibration dampening components)
structure-light-3d-scanner-in-india
Bio-Compatible Medical device

INDUSTRY

Aerospace & Defense

Academic & Research

Transportation & Motorsports

Healthcare

Manufacturing & Prototyping

3D Printing Service Bureaus

Automotive

High Tech

Hospital or Medical Clinic

Consumer & Durable Goods

Jewelry

Medical Contract Manufacturers

Medical Device Manufacturers

Medical Schools

VIDEO GALLERY

BLOG

Download Brochure
DOWNLOAD

FAQs

How much do 3dsystesm Figures four 3D Printers cost in India?

Please contact PRECISE3DM sales representative or fill up the get quote option from our website to know the latest offer for Figure 4 3D printers.

What is the Figure 4 standalone 3D printer?

Figure standalone is a next-generation 3D printer used for plastic parts production applications. Unlike other printers, it can be used for making End parts without core cavity and molds.

How does 3D Systems Figure 4 Work?

Figure 4 uses the DLP (Digital Light Projection)3D printing technology.

Where can I buy Figure 4 resin in India?

PRECISE3DM Is an authorized reseller of Figure 4 standalone 3D printers in India. We provide pre-sales and post-sales support for Figure 4 3D printers in India. We also resell Figure 4 3D printers resins in India.

Where can I buy a figure 4 3D printer in India?

PRECISE3DM Is an authorized reseller of Figure 4 standalone 3D printers in India. We provide pre-sales and post-sales support for Figure 4 3D printers in India.

Per day how many parts can Figure 4 can print?

Figure 4 has high print speeds that make it possible to print multiple parts in a realistic time frame. Based on the size and volume of the part, it can print even per day 200 parts
