When Detail and Accuracy matters
Gom On-site 3D Scanning Visit Precise3DM Scanning centreWe Precise3DM, Provide Gom 3D scanning services in India. It uses structured blue light high-end 3D scanning technology that provides precision 3D Scans with detailed resolution at high speed. With this, we provide repeatable, accurate measurements with flexibility and process reliability.
We have set up a world-class GOM 3D scanning centre in many parts of the country to enable pan India customers to 3D scan their part/object /Component using our Gom 3D scanning service locally in nearby locations
Equipped with Various measuring volumes starting from MV170: 170 x 130 mm² to MV1200: 1200 x 1000 mm² to high-end 3D scan small and large objects.
Exclusive giant tripod and Additional photogrammetry option to be used with Gom System to 3D scan very large items to maintain the high level of accuracy.
Precise3DM Pan India 3D scanning service for Onsite Gom 3D Scanning along with our in-house 3D scanning experts.
Globally trained expert to operate GOM systems and software.
In house team for post 3D Scan applications such as reverse engineering and 3D Inspection
Scanner Name |
OPTICAL BLUE LIGHT 3D SCANNING |
|---|---|
| Mounting | Tripod scanner |
| Accuracy | 0.008 mm / 0.015-0.02 mm / 0.04-0.05 mm (for bigger objects) |
| Field of View | 175mm / 600mm / 1200 mm |
| Scan Range | Flexible |
| Point Spacing | 0.05mm / 0.179mm / 0.378 mm |
| Depth | 590mm / 590mm / 1180mm |
| Speed | Approx 1 second |
| Resolution | Higher Resolution |
| Pixel | 8 megapixel |
| Technology | Structured Blue Light scanner |
| Temperature | 5°-40° C |
| Power Source | 90 to 230 V AC |
Image Gallery

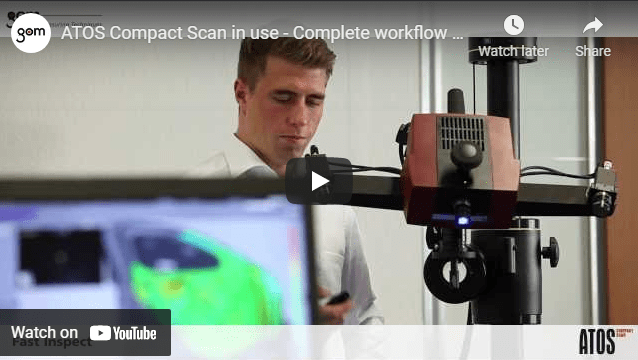

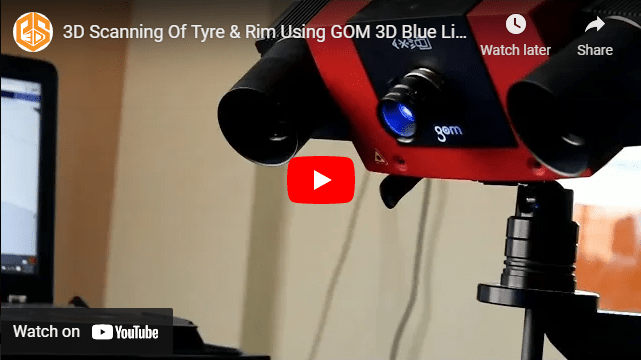

Videos
Optical Blue Light 3D Scanner
OPTICAL BLUE LIGHT
visit a scanning center near you
Send us a request for a Quotation Online
Visit nearby GOM 3D Scanning Center
Get Scan to CAD or 3D Inspection report through email
Let us come to you
Send us a request for a Quotation Online
We bring our complete GOM setup to your location to scan objects
Get Scan to Cad or 3D Inspection report through email
Download 3D Scanning Service Brochure
downloadWe Precise3DM equipped with four measuring volumes that enable us to scan smaller coins to a bigger plane. Additionally, we also have a photogrammetry system that will ensure accuracy while 3D scanning bigger components.
Yes, we provide onsite 3D Scanning in any part of the country. You need to fill out Gom onsite 3D scanning service foam. Our Gom 3D scanner expert near your location brings the Gom scanner along with an appropriate FOV(Measuring volume )based on your component size and applications. Look at the Precise3DM Gom 3D scanning service near your location. We spread across Chennai, Bangalore, Pune, Hyderabad, and New Delhi.
3D Scanning of entire aerospace,3D Scanning of full car interior and exterior, 3D Scanning of heavy machines,3D Scanning of large-sized castings,3D Scanning of high detailed small plastic components,3D Scanning of automotive parts, 3D Scanning of tiny components, and much more variety of components can be 3D scanned using GOM 3D scanners
