FIGURE 4 PRO-BLK 10
OVER VIEW
Production-grade additive manufacturing material with game-changing thermoplastic-like mechanical properties and long-term environmental stability.
Production-grade additive manufacturing material with game-changing thermoplastic-like mechanical properties and long-term environmental stability.
. Tool-less, same-day production.

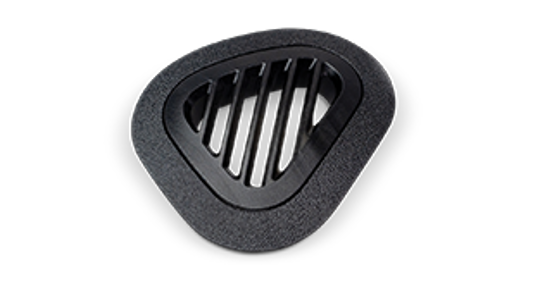

. Direct production of small black plastic parts; examples include: motor housings, connectors, snap-fits, automotive interior, and other general-use parts
.Digital production to replace injection molding or soft tooling processes
. Improved environmental stability of mechanical and performance properties over time
. Fast throughput for part-in-hand with no secondary thermal cure required
. Simple, single solvent cleaning
. Excellent surface quality and repeatability
. Accurate, low distortion material for fast first
. Fast print speed up to 62 mm/hr at 50 micron layer thickness
. 70 ¡ÆC heat deflection temperature, 12% elongation at break
. Durability and strength
. UL94 HB flammability
. Biocompatible capable per ISO10993-5 and ISO10993-10
. Exhibits thermoplastic behavior in necking at a tensile breakpoint
The full suite of mechanical properties is given per ASTM and ISO standards where applicable. All parts are conditioned per ASTM recommended standards for a minimum of 40 hours at 23 ¡ÆC, 50% RH. Material properties include physical and mechanical properties, as well as thermal, UL flammability, and electrical (dielectric strength, dielectric constant, dissipation factor, and volume resistivity).
Figure 4 technology prints parts that are isotropic in mechanical properties meaning the parts printed along either the XYZ axis will give similar results. Parts do not need to be oriented to get the highest mechanical properties, further improving the degree of freedom for part orientation for mechanical properties.
. Fast print speed up to 62 mm/hr at 50-micron layer thickness
. 70 ¡ÆC heat deflection temperature, 12% elongation at break
. UL94 HB flammability
. Biocompatible capable per ISO10993-5 and ISO10993-10
. Exhibits thermoplastic behavior in necking at a tensile breakpoint
. Long-term indoor and outdoor environmental stability
