One-Click Scan
Scan on 1 click
0.01 mm Accuracy
Full Color Scanning
Lightweight design
sm@precise3dm.com | sales@precise3dm.com

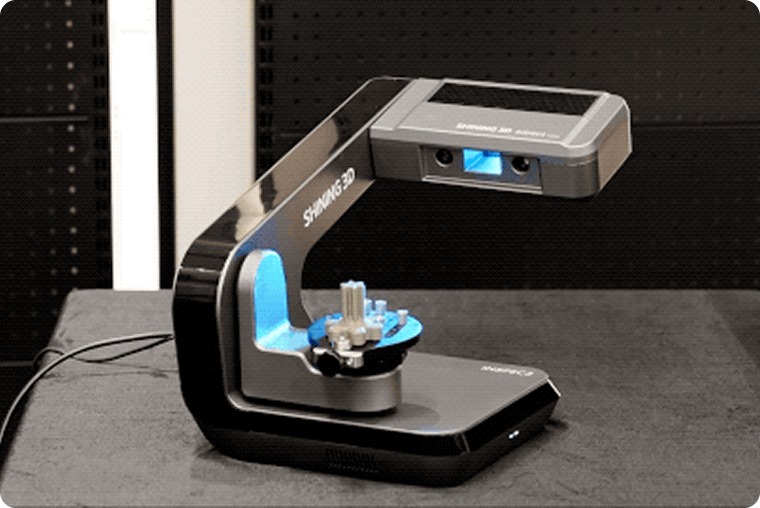

Equipped with a 3-axis turntable, this device enables hands-free scanning from multiple angles with a single click. Its automatic calibration and intuitive design streamline the process, ensuring ease of use, efficiency, and exceptional accuracy. So we call it "you scan at the fingertip"
Achieving a scanning accuracy of 0.01 mm, this system provides consistent and dependable results for intricate small objects, ensuring top-notch 3D data for applications such as inspection, reverse engineering, and high-precision manufacturing.
Fitted with dual 5MP high-resolution cameras, this system captures every intricate detail of components, providing sharp, precise 3D data — even for the smallest features and complex geometries.
The texture module accurately captures real-world colors, providing precise texture reproduction for improved inspection, documentation, and digital modeling across a wide range of applications.
Driven by UltraScan software, it incorporates an AI-powered scanning algorithm for seamless operation. Offering wide compatibility with platforms like Geomagic Control X, Design X, PolyWorks, EXModel, and more, it optimises workflows for quality inspection and reverse engineering.
Featuring an integrated inspection module certified by PTB, it ensures reliable, high-precision 3D measurements and generates detailed inspection reports.

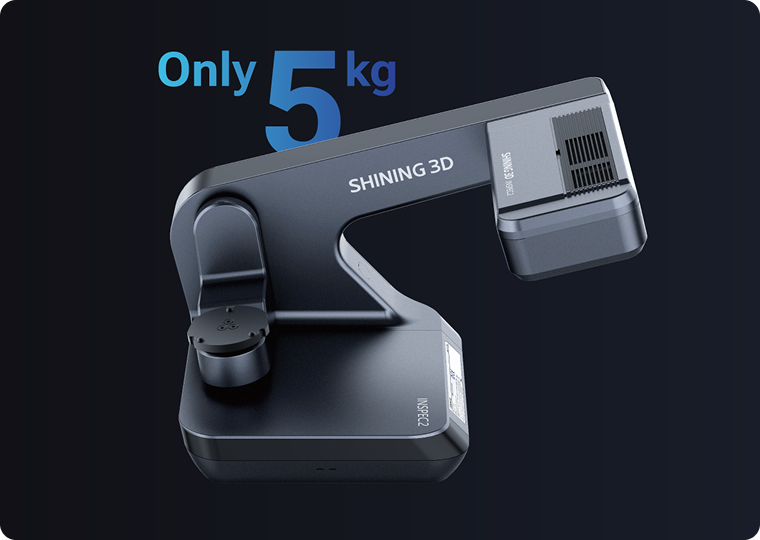

Weighing just 5 kg, its sleek and compact design allows for easy integration into labs, workshops, and industrial settings without taking up much space.
At Precise3dm, we offer more than just equipment – We provide a premium and Peace-of-mind warranty for the Shining 3D Metrology grade 3D scanners. In case of technical difficulties during scanner usage, we will replace a backup 3D scanner within 3 to 24 hours from our local sales offices across the country.

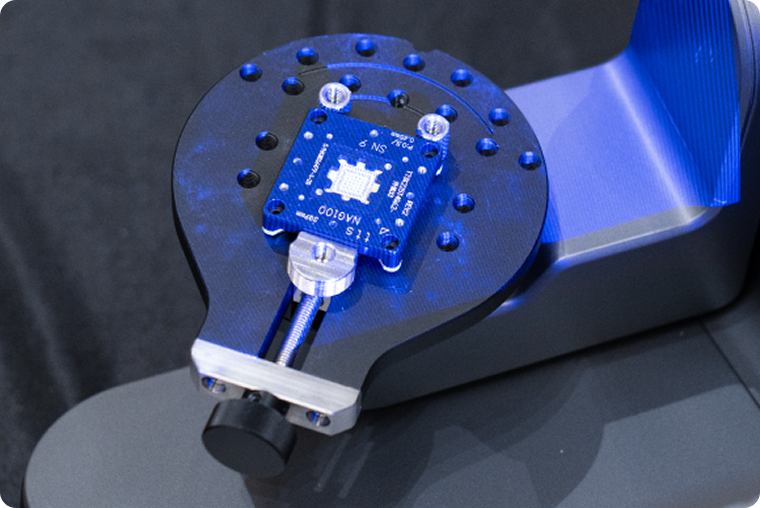

The AutoScan Inspec2 is extensively used in the electronics sector to capture precise 3D data of small components like connectors and chips. With its high-resolution scanning, it accurately reproduces fine details, making it an invaluable tool for product design validation, reverse engineering, and quality control of electronic parts.
In the world of art and cultural creation, the AutoScan Inspec2 helps artists and designers in digitizing miniature sculptures, handcrafted models, and historical artifacts with exceptional accuracy. Its capability to capture intricate textures and complex geometries makes it ideal for digital archiving, reproduction, and bespoke design work.
The AutoScan Inspec2 is an essential tool in medical research, offering precise 3D models of biological specimens, dental impressions, and orthopedic devices. Its non-contact scanning technology guarantees safe and accurate data collection of delicate samples. This data can be used for in-depth analysis, custom prosthetic design, and educational applications.
In the jewellery industry, the AutoScan Inspec2 provides highly accurate scanning of detailed designs, including rings, pendants, and wax models. It captures the finest engravings and surface textures, allowing jewellers to create flawless digital replicas for CAD modeling and 3D printing. This improves both the efficiency and precision of jewellery production and restoration.
Achieve automatic calibration with a single click. The process is straightforward and user-friendly, significantly minimizing the chances of calibration errors.
The AutoScan Inspec2 features a multi-object mode that allows for scanning up to 8 objects simultaneously, significantly enhancing scanning efficiency.
Once a specific area is selected, the software automatically detects it and performs supplementary scanning to ensure complete data capture.
Activating this mode automatically generates a second project to scan the opposite side of the object. The data from both projects can be merged either automatically or manually, simplifying the process of capturing the full data of the object.
| Accuracy | 0.01 mm | Field of view | 140 × 90 × 80 mm |
|---|---|---|---|
| Align mode | Feature, Markers | Point distance | 0.05 mm |
| Rotation axis | 3 Axis | Camera resolution | 2 × 5MP |
| Light source | LED blue light | Color scan | Supported |
| Output format | STL, OBJ, PLY | Certification | CE, FCC, ROHS, WEEE, KC |
Full Field Inspection for Impeller Powered by AutoScan Inspec2
Full Field Inspection for Impeller Powered by AutoScan Inspec2

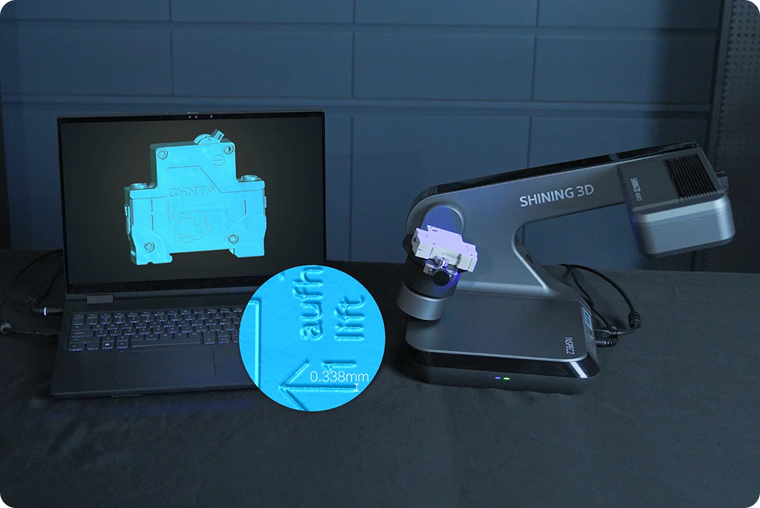

Capture Every Detail AutoScan Inspec2 Scans an Circuit Breaker
Yes, the scanner is equipped with a texture module that captures true-to-life color data, ensuring accurate texture reproduction for enhanced inspection, documentation, and modeling.
The recommended object size for optimal scanning is within a field of view of 140 × 90 × 80 mm, though it can capture smaller objects with great detail.
The scanner supports multi-object scanning and can handle up to 8 objects simultaneously, greatly enhancing scanning efficiency.
Yes, the scanner can perform scans without requiring markers. It supports feature-based alignment for accurate scans even on markerless objects.
The scanner can capture a wide range of materials, including plastics, metals, ceramics, and more, as long as the surface is suitable for 3D scanning. For highly reflective or transparent materials, specific scanning settings or coatings may be required.
Metrology-grade accuracy: 0.01 mm (10 µm)
Yes—features a 3-axis turntable with one-click scanning, enabling hands-free, multi-angle operation.
The Inspec2 adds full color scanning and advanced software integration, while keeping similar accuracy and automation features of the original.
Lightweight at just 5 kg, its compact design fits well on benchtops in labs or workshops, and the one-click operation simplifies usage.
