Thanks to the dynamic tracking capabilities of the FreeTrak bar, the FreeScan Trak Pro2 uses tracking targets to monitor the TE25 scanner’s movement, eliminating the need for manually placing markers on the scanned object. This markerless operation not only saves time but also ensures a smoother scanning process.

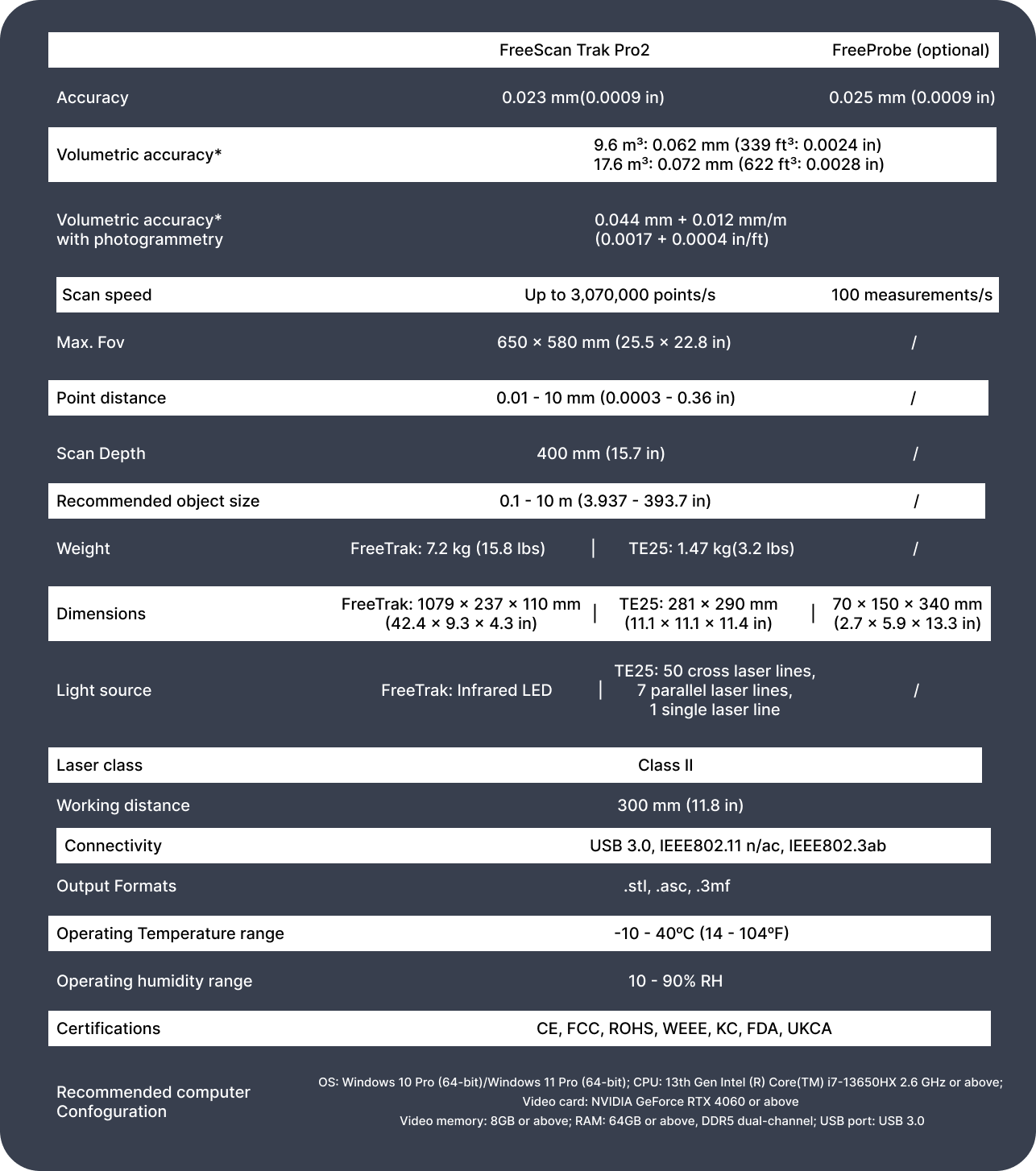

Achieve metrology-grade results and Accuracy with the FreeScan Trak
Pro2, — up to
0.023mm. based on
VDI/VDE 2634 in an ISO/IEC
17025:2017 certified lab.
The FreeScan Trak Pro2 offers a wide and expandable tracking range, allowing for the measurement of various volumes and surfaces without sacrificing accuracy.
The FreeScan Trak Pro2 allows you to easily switch between optical tracking and marker-based scanning depending on your project’s needs. This dual functionality gives you the flexibility to tackle a broader range of applications and surfaces.

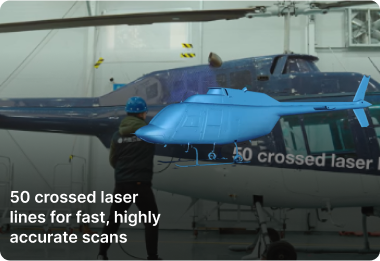

Equipped with 50 blue laser lines and two industrial-grade 5.0MP cameras, the FreeScan Trak Pro2 delivers ultra-high-speed data acquisition for smooth, real-time scanning. The system’s advanced capabilities ensure seamless and efficient operation, even for complex scans.
Our FreeScan Trak software enhances your scanning experience with.
See your mesh data as you scan, saving time on point cloud processing later.
Change the scanning resolution during the process without restarting your project.

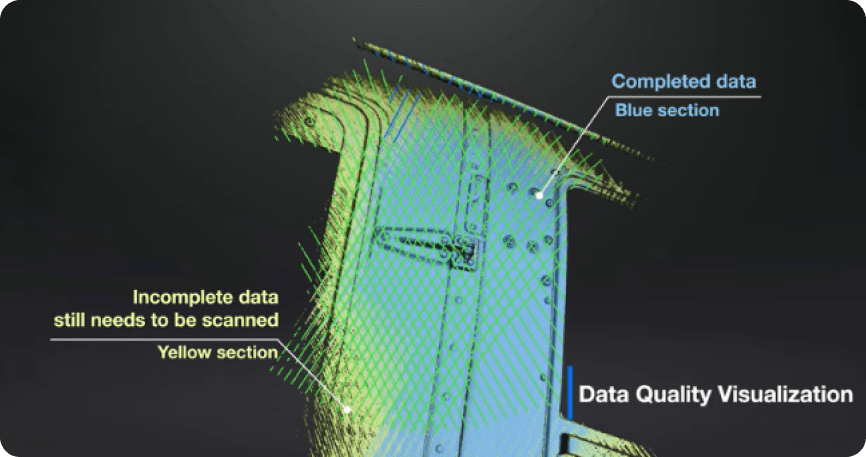

Monitor laser line colors to ensure correct working distance and check data quality with a built-in indicator.
